“Tuya WiFi Smart Energy Meter for Solar PV Systems – Bidirectional Power Monitor with CT Sensor & App Control”
“Tuya WiFi Smart Energy Meter for Solar PV Systems – Bidirectional Power Monitor with CT Sensor & App Control”
Couldn't load pickup availability
SPECIFICATIONS
Monitor your solar energy system with precision using this Tuya WiFi Smart Energy Meter – designed to track both power production and consumption in real time.
With bidirectional measurement and support for the Tuya Smart / Smart Life app, this device allows you to monitor your solar panel system and energy usage directly from your smartphone.
Perfect for DIY solar PV setups, off-grid applications, and home automation integrations.
Key Features:
- Compatible with Tuya Smart and Smart Life apps
- WiFi-enabled for remote monitoring via mobile phone
- Bidirectional metering: measures both input (solar generation) and output (consumption)
- CT clamp sensor included
- Voltage range: 6–24V DC
- Easy to install and configure
- Ideal for solar panel systems, RVs, home energy systems
Technical Specifications:
- Brand: OEM (No brand)
- Origin: Mainland China
- Power supply: DC 6–24V
- Connection: WiFi
- CT Sensor: Included
Tuya Wifi Intelligent Energy Meter Solar PV System Power Production Consumption Bidirectional Monitoring Meter Mobilephone APP Control Power Monitor with CT
Specification:
This Tuya WiFi intelligent energy meter helps measure how much energy the solar and photovoltaic system is producing and how much power it is consuming by monitoring application. Controlled by the Tuya APP, the app displays real-time power, current, voltage, power factor and frequency for channel for forward and reverse. Supports automatic setting of valve-values and with push notifications, and the device can be calibrated by adjusting the percentage.Features:
Powerful Function: High-precise measurement, real-time monitoring of voltage, current and power of each channel when generating and consuming kilowatts.
Mobilephone APP Control: The app displays real-time power, current, voltage, power factor and frequency of channel for forward and reverse.
Power Statistics: APP program displays daily, monthly and yearly reverse and forward totals of channel individually. Power usage percentage display to avoids abnormal power usage.
Automation Function: You can set the power or current value in APP, only when the power or current exceeds the value, the device will starts to work.
Feature-rich Design: Automated setting of valve-values and push notifications, and the device is able to be calibrated by adjusting the percentage.
Easy Installation: 35mm rail mounting, no need to replace wires connection is safer, just put the wires in the clip and measure.
Specifications:
Name: Tuya WiFi Energy Meter
Material: PC
Type: 1CT, 2CT (optional)

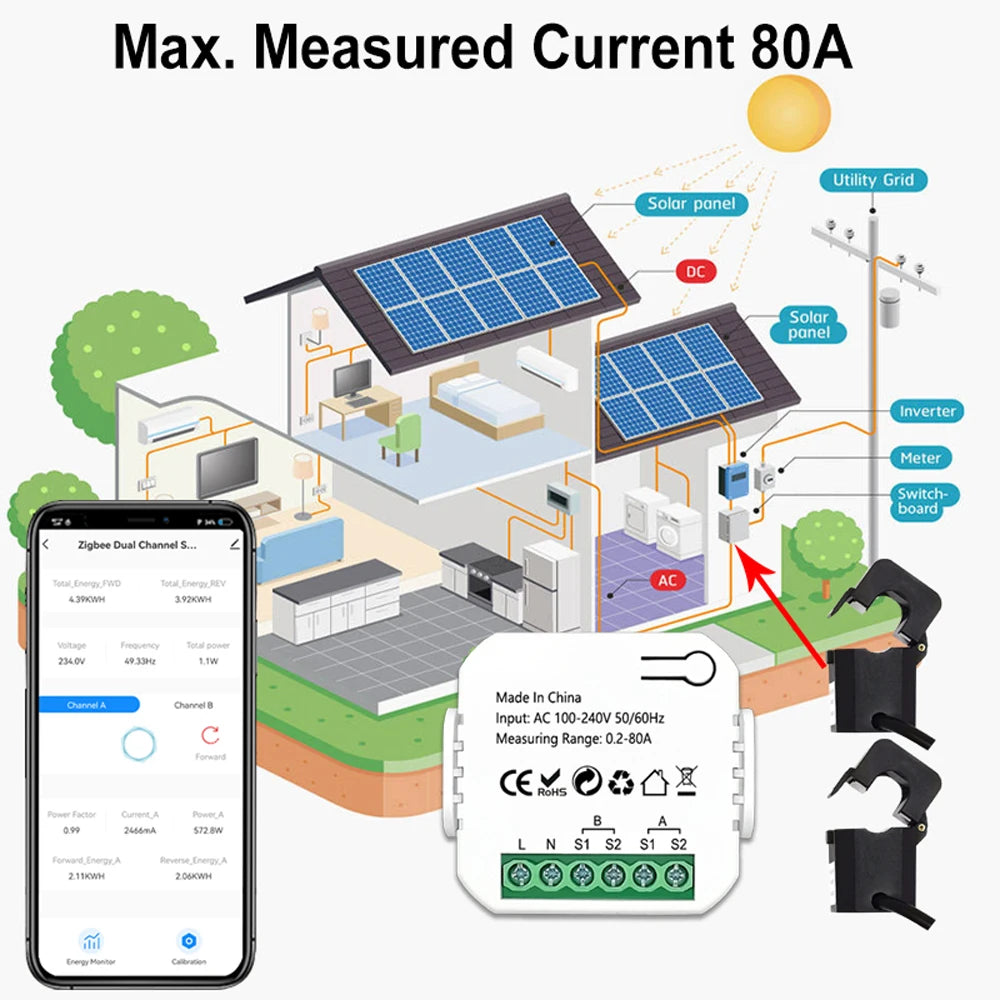

Current: 0.2-80A
Input voltage: 100-240 V, 50/60Hz
Accuracy grade: 1.0
Working current: -10℃ to 55℃
Wireless type: 2.4GHz

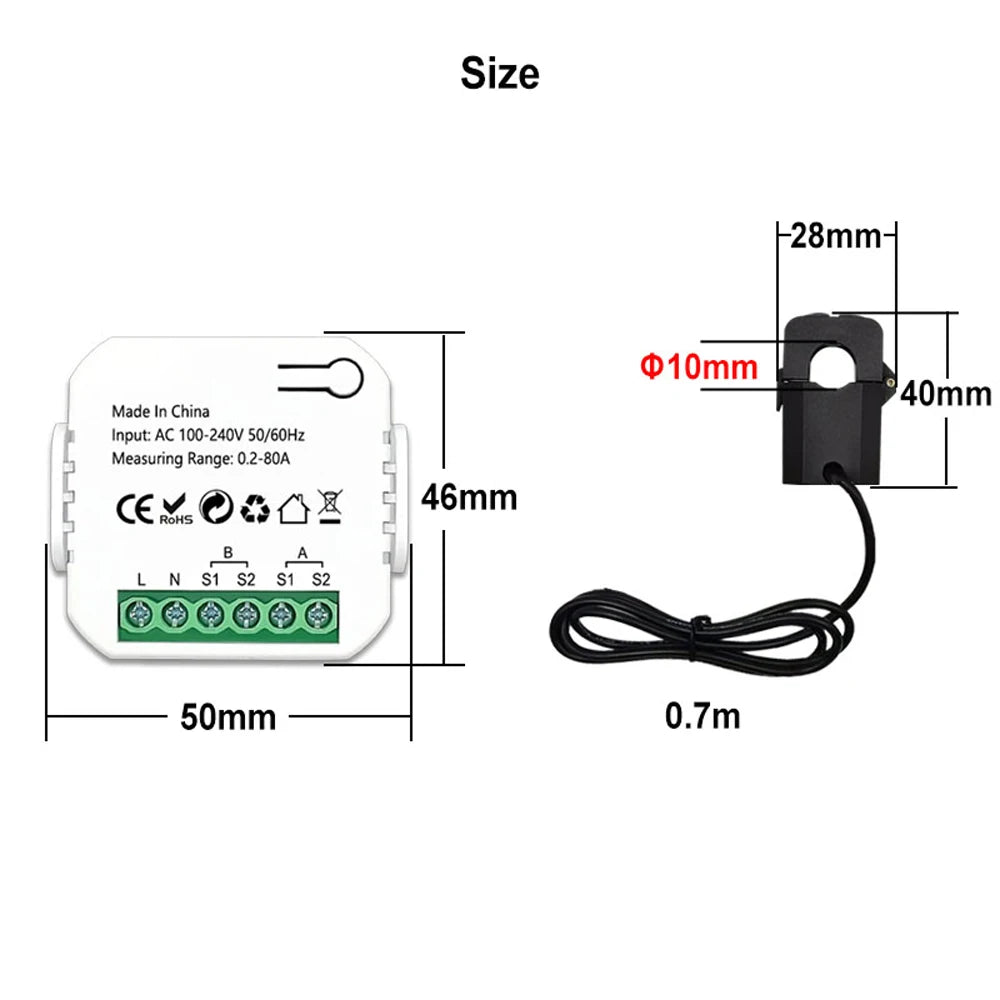

Item size: 47 * 47 * 18mm / 1.85 * 1.85 * 0.71in
Package size:
1CT: 100 * 100 * 30mm / 3.94 * 3.94 * 1.18in
2CT: 115 * 115 * 40mm / 4.53 * 4.53 * 1.57in
Package weight:
1CT: 150g / 5.29ounce
2CT: 200g / 7.05ounce
Packing List (1CT):
1 * Tuya WiFi Energy Meter
1 * CT
OR
Packing List (2CT):
1 * Tuya WiFi Energy Meter
2 * CT
Package List:
(1CT):1 * Tuya WiFi Energy Meter
1 * CT
OR
Packing List (2CT):
1 * Tuya WiFi Energy Meter
2 * CT
