“Tuya WiFi 3-Phase Smart Energy Meter – Bidirectional Power Monitor with 5 CT Clamps (3×200A + 2×50A) for Solar PV Systems”
“Tuya WiFi 3-Phase Smart Energy Meter – Bidirectional Power Monitor with 5 CT Clamps (3×200A + 2×50A) for Solar PV Systems”
Couldn't load pickup availability

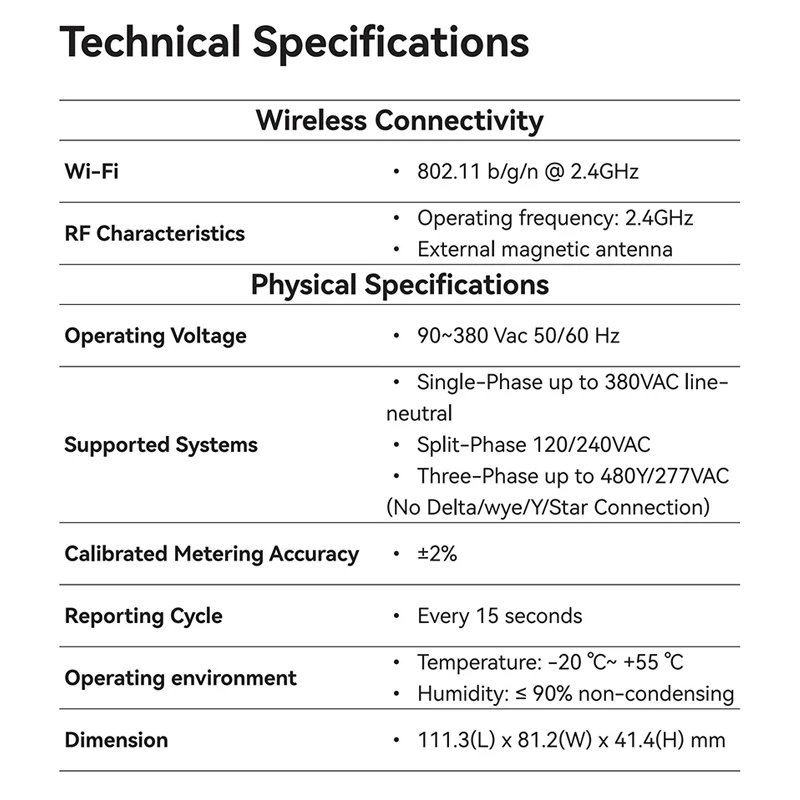

SPECIFICATIONS

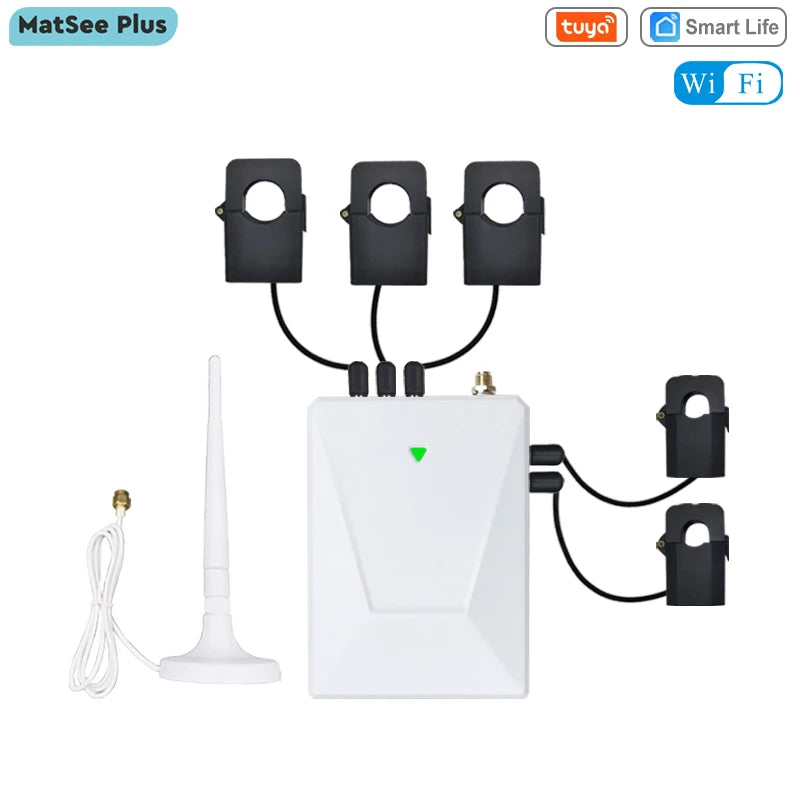

Track and manage your power usage with the Tuya Smart 3-Phase WiFi Energy Meter – built for bidirectional energy monitoring in solar PV systems and industrial/residential electrical setups.
Compatible with Tuya Smart and Smart Life apps, this energy meter provides real-time insights into both power consumption and production across 3 phases.
Key Features:
- Compatible with Tuya Smart / Smart Life app
- Supports bidirectional monitoring (consumption and generation)

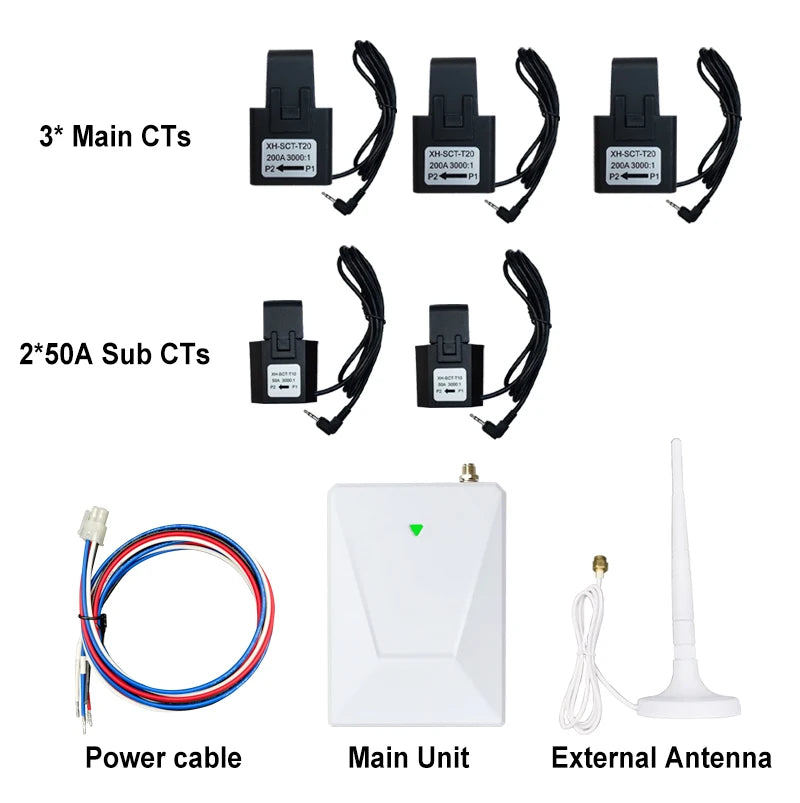

- Includes 5 CT clamps: 3 × 200A for power lines + 2 × 50A for solar input/output
- WiFi-enabled for remote monitoring
- 3-phase compatible (90–380V AC, 50/60Hz)
- Operating temperature: -20°C to +55°C
- Measurement accuracy: ±2%
- Compact and easy to install
Dimensions:
111.3 × 81.2 × 41.4 mm
Brand: SOPVSmartEnergy
Power Source: AC
Clamp Type: Split core CT (included)
Origin: Mainland China
Certification: CE
Description
It helps you monitor the amount of electricity Consumed and Producedn in your facility by connecting the clamp on to the power cable. Monitor whole home Energy and up to 2 individual circuits.
The Tuya APP can only display hourly power consumption for 7 days.
The device does not work with the Home Assistant.
Main Features
• Tuya compliant. Support automation with other Tuya device by export
and import of grid or other energy values

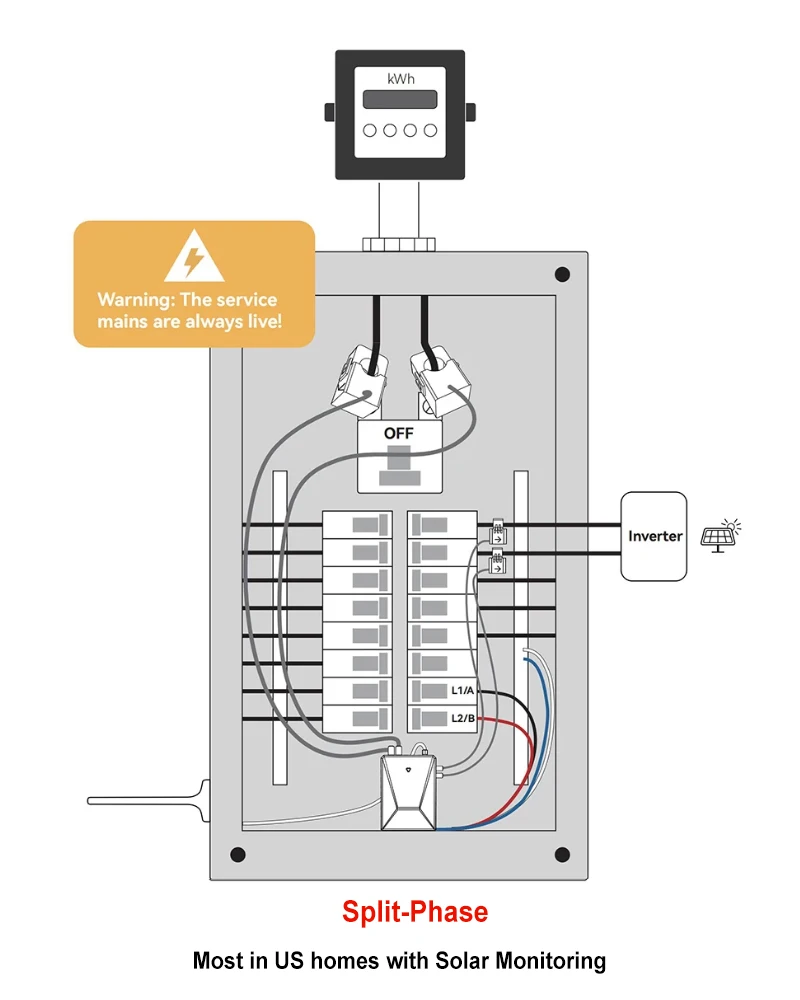

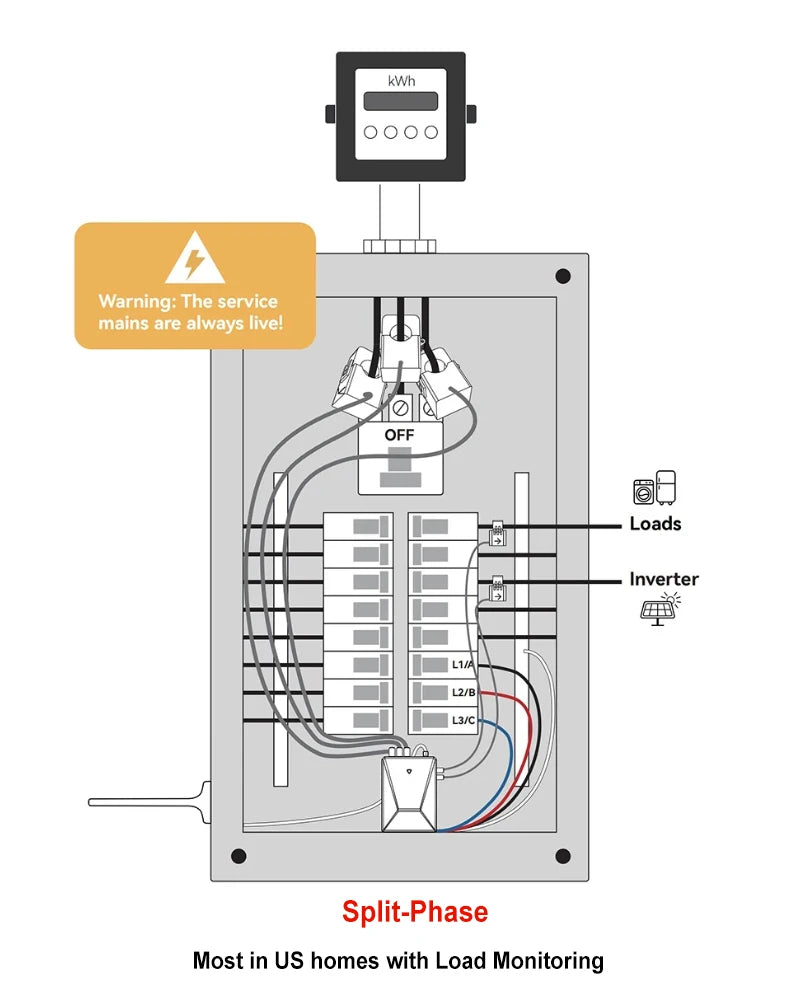

• Single, Split-Phase 120/240VAC, 3-Phase/4-wire 480Y/277VAC
electricity system compatible

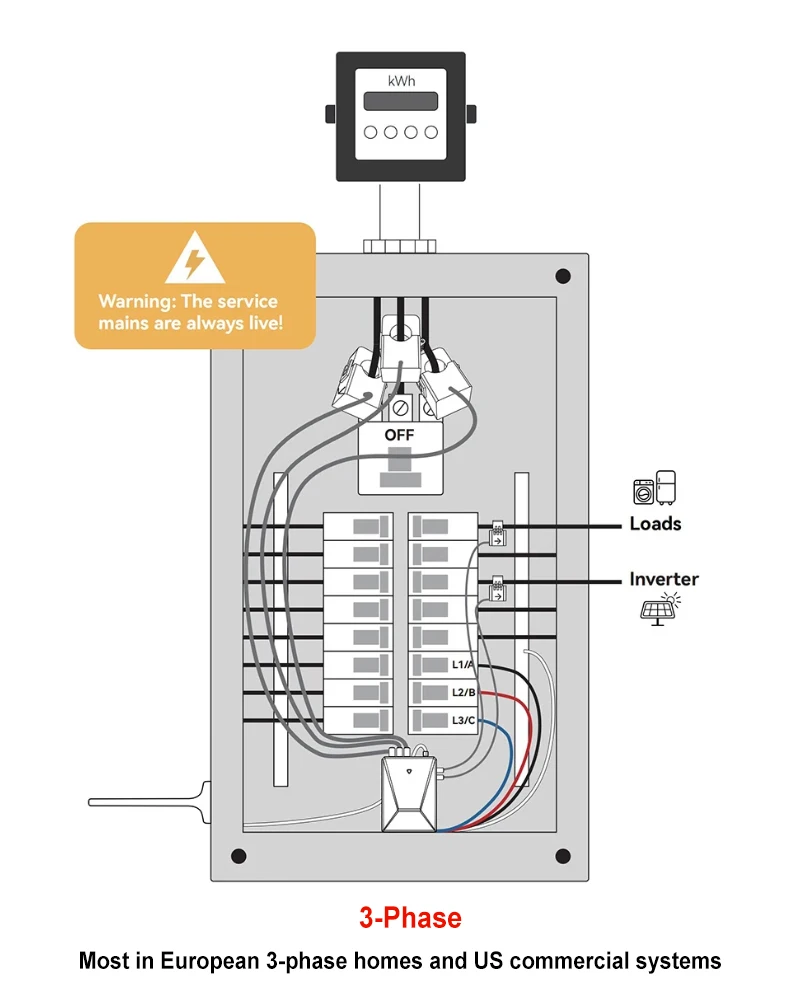

• Remotely monitor whole home Energy and up to 2 individual circuits
with 50A Sub CT, like Solar, lighting, receptacles
• Bi-Directional measurement：Show how much energy you are
producing, energy consumed and excess energy back to the grid
• Real-time Voltage, Current, PowerFactor, ActivePower, Frequency
measurement

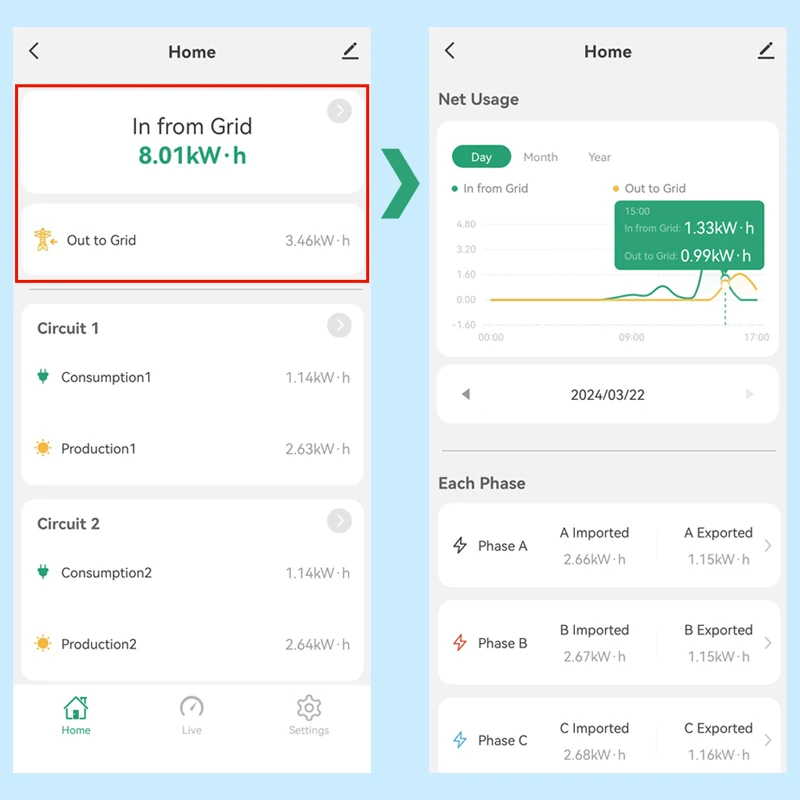

• Historical data of Energy Consumed and Energy Production is
displayed in Day, Month, Year

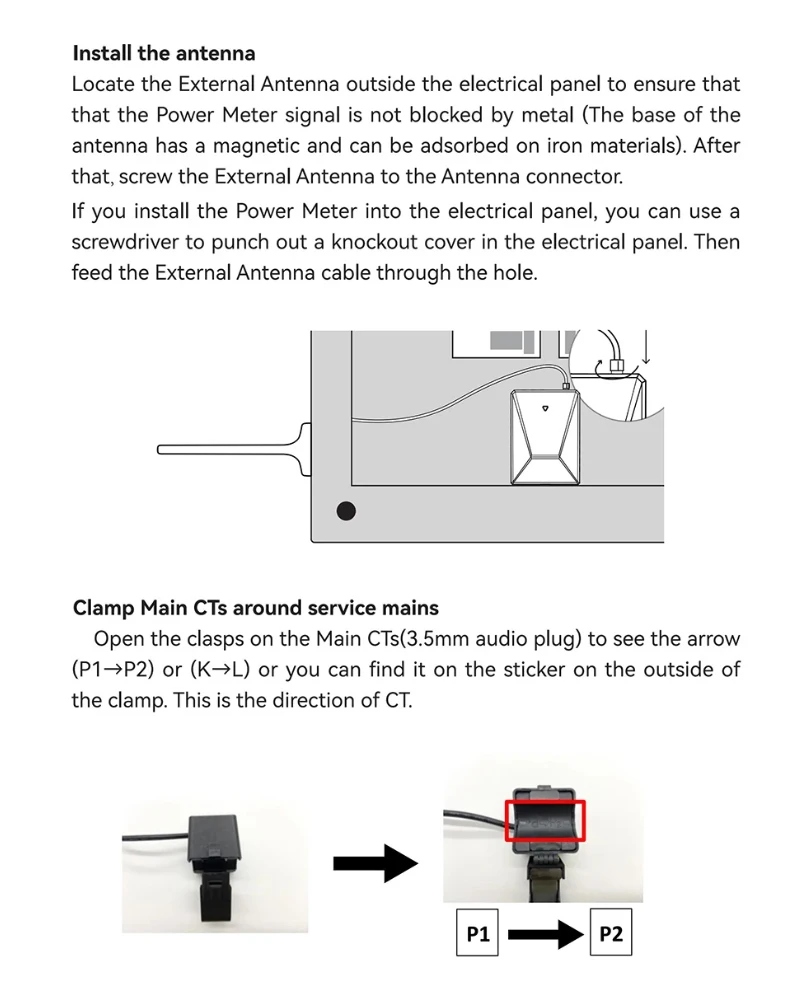

• External antenna prevents signal from being shielded

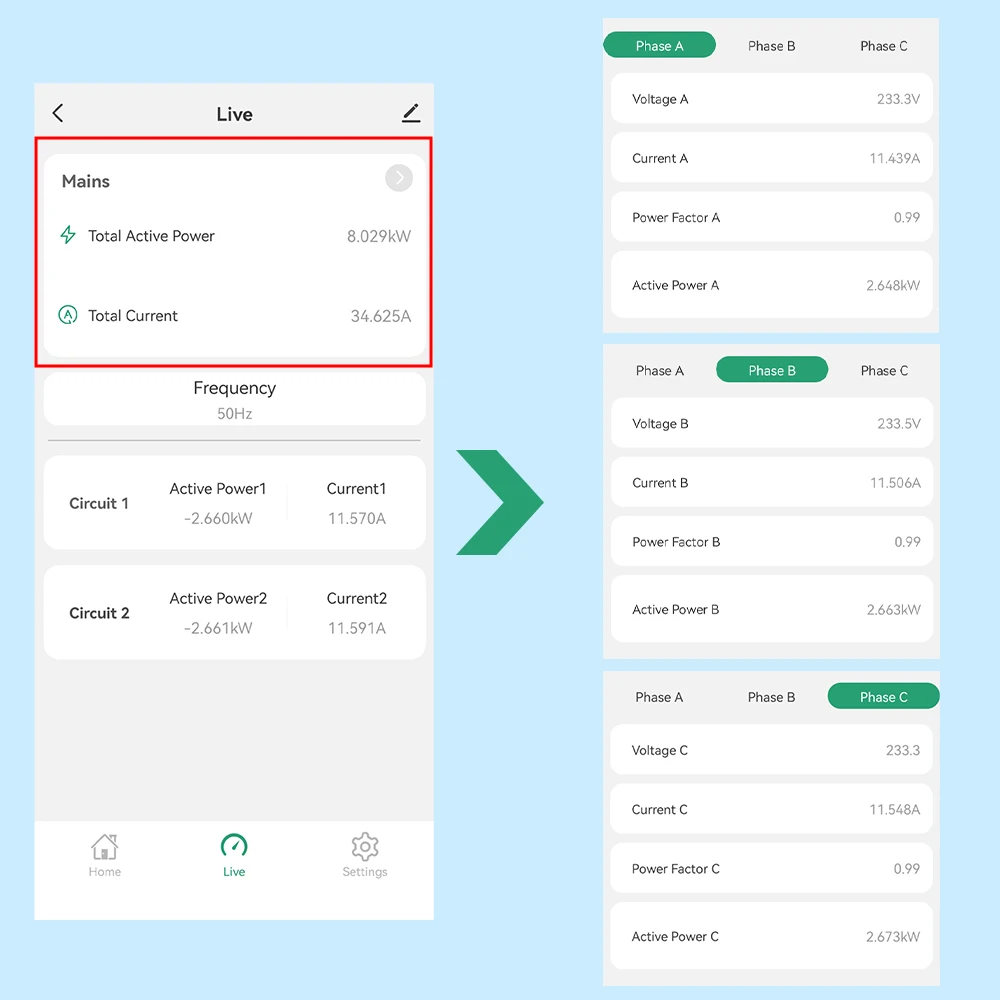

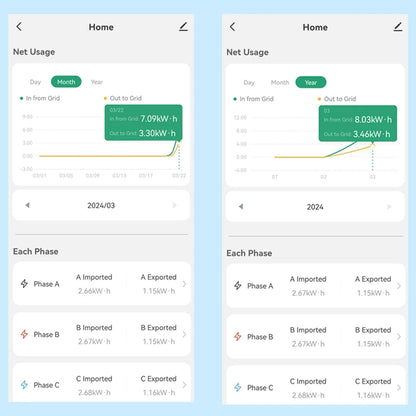

The App displays the voltage, current, active power, and frequency in real time.

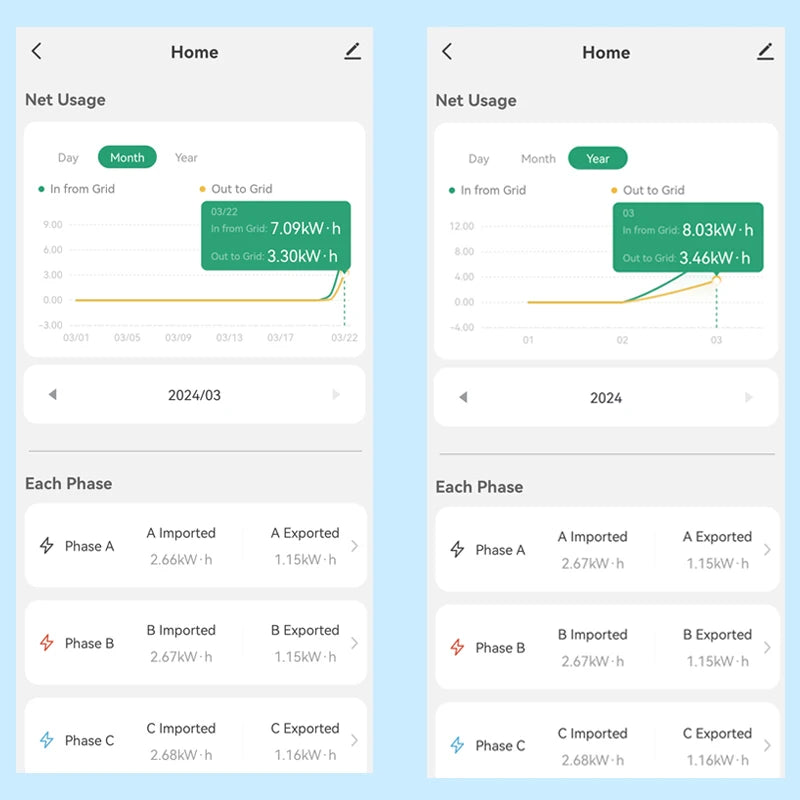

It has electric statistic function, you can view KWh power consumption by hour, by day, by month, and by year

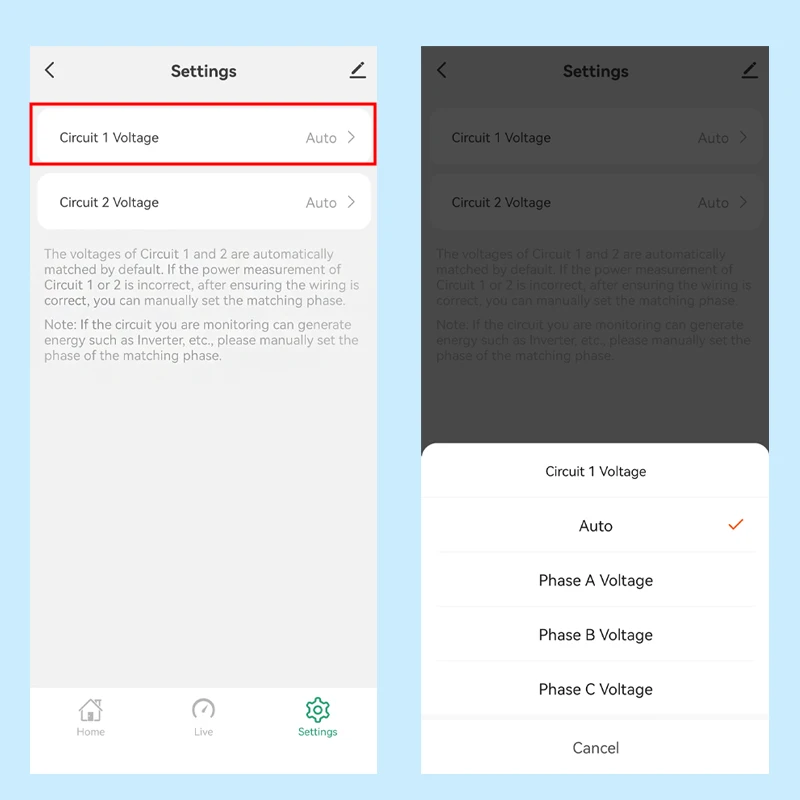

Select the voltage corresponding to 50A CT
Create Smart Scenes
